Nintendo Switch 2 game card port repair in Bendigo

A small cartridge slot can be a surprisingly difficult repair. This Nintendo Switch 2 came to Repair Lab with a damaged game card port. Replacing it involved motherboard work and solder connections hidden beneath the reader. The completed repair cost $250.

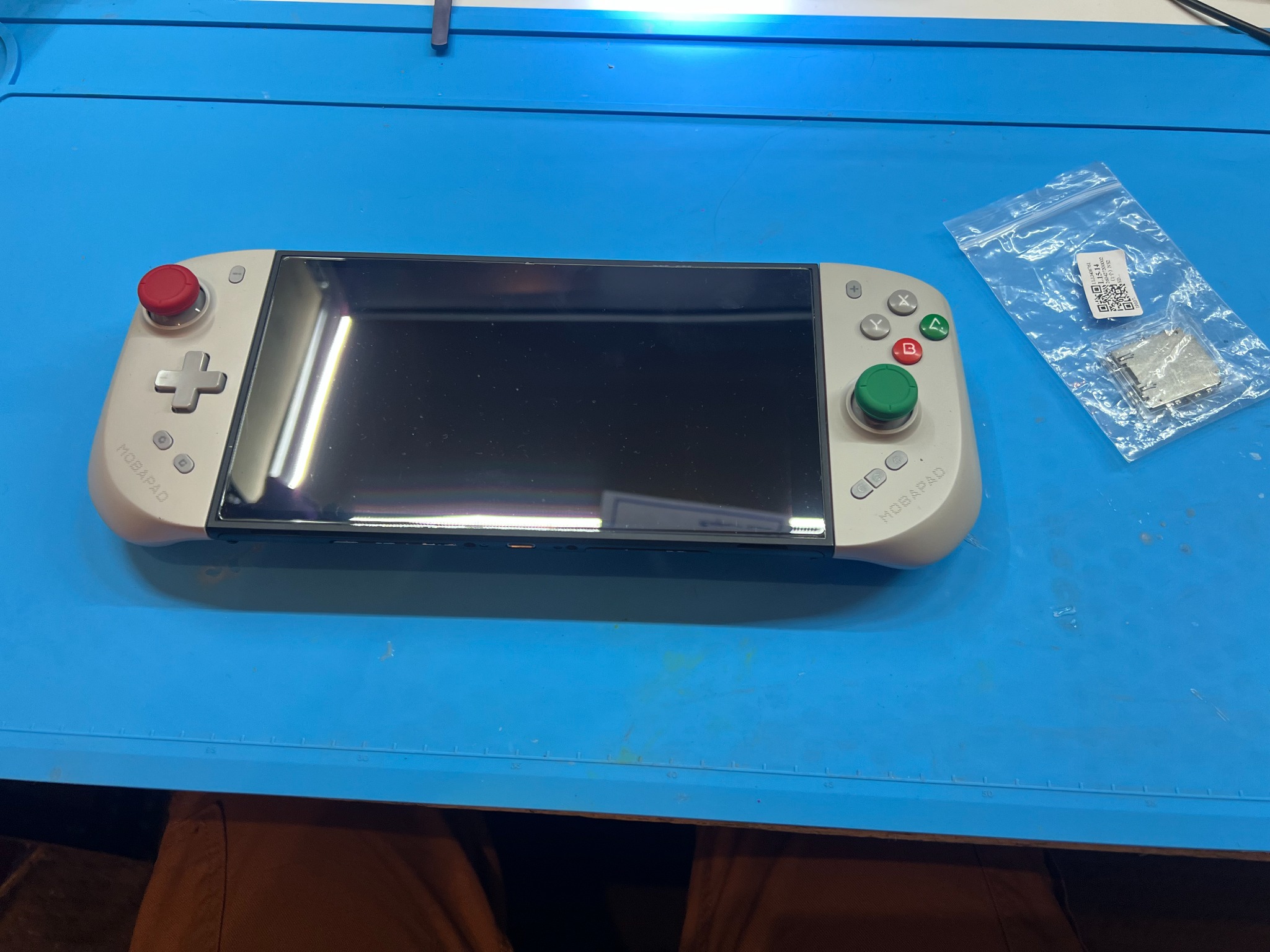

Nintendo Switch 2 on the blue Repair Lab bench with a replacement game card port beside it — The console and replacement game card port on the bench.

The fault: a damaged game card port

The game card port is the socket that makes contact with a physical game cartridge. On this console, the damaged port needed replacing. This was a physical connector repair, rather than a software update or a settings change.

From outside the console, it looks like a small part. Inside, getting to it means working through the console's casing, shielding and internal assembly to reach the motherboard.

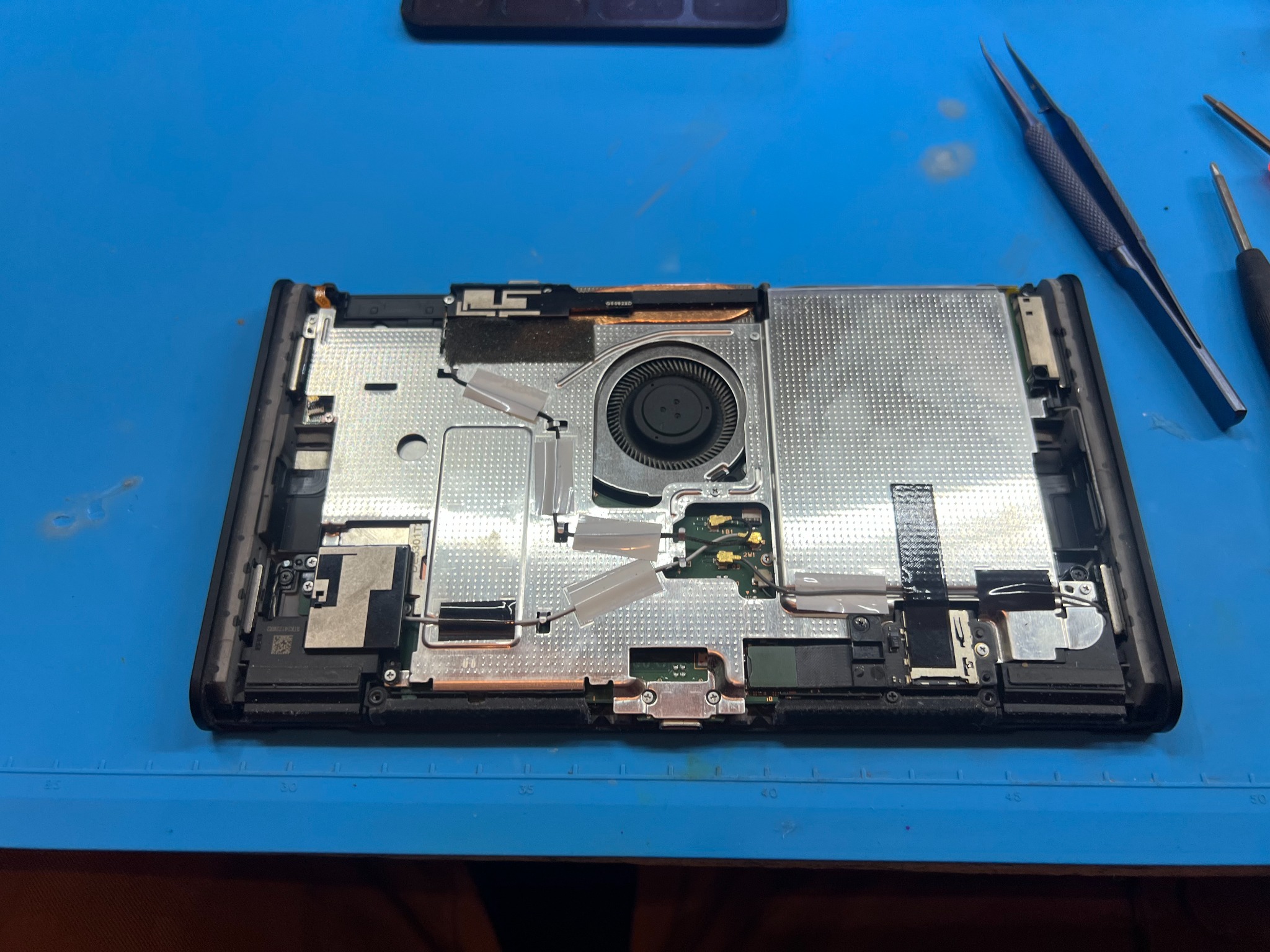

Nintendo Switch 2 with the rear cover removed and internal metal shielding exposed — Rear cover removed, with the internal shielding still in place.

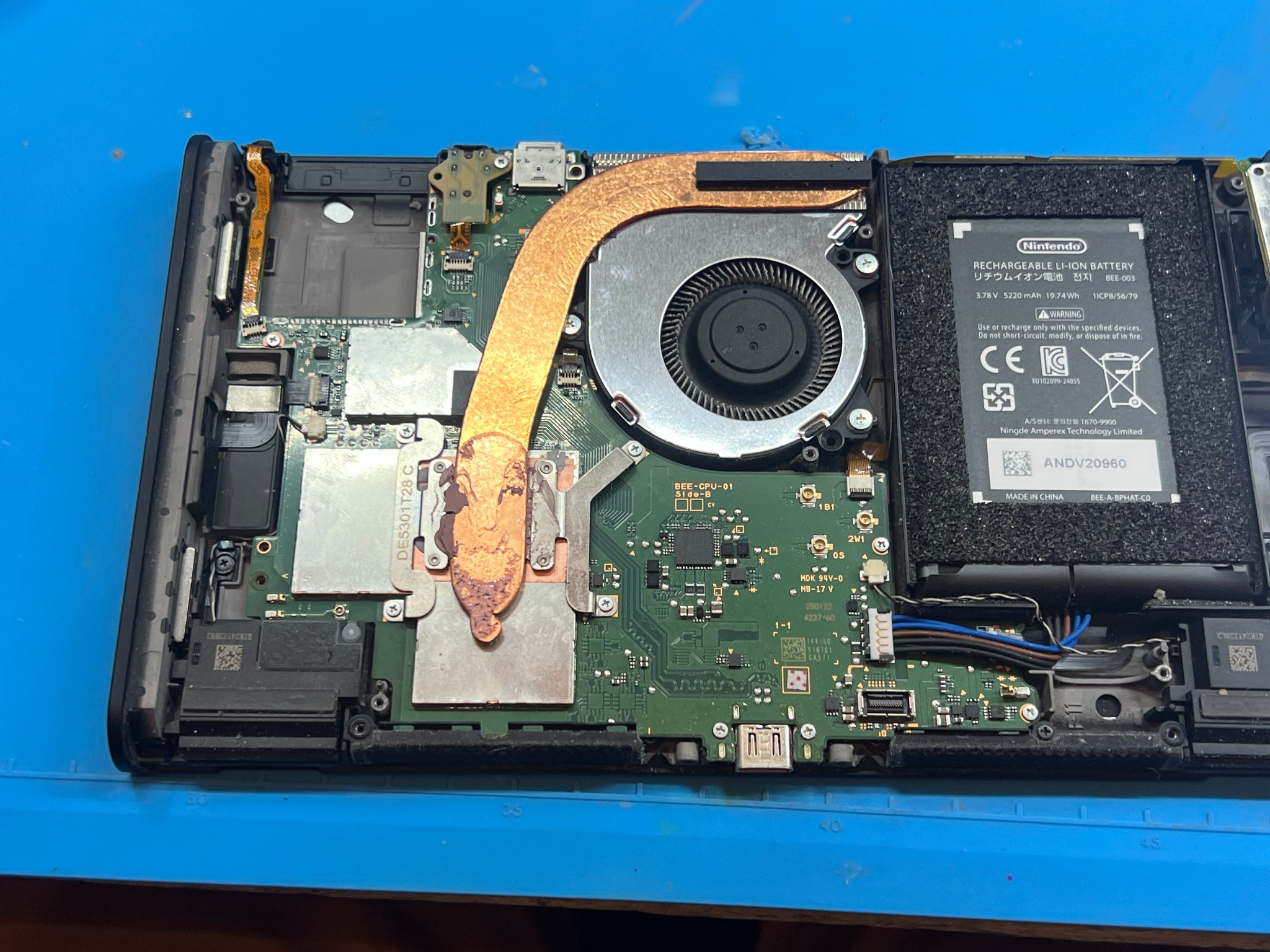

Switch 2 motherboard, cooling assembly and battery with the outer shielding removed — Further disassembly exposes the motherboard and cooling assembly.

Why the hidden solder joints make this difficult

The biggest challenge was the port's blind solder connections. The electrical joints sit underneath the reader, out of direct view when the replacement is in position. You cannot simply run a soldering iron along an exposed row of pins and inspect each joint from above.

That makes alignment and soldering much less forgiving. The replacement has to sit correctly over its connections, with care taken around the small motherboard components nearby. A reader can look seated from the outside while still having a poor electrical connection underneath.

This was a particularly demanding connector replacement. It calls for experience with delicate board work, and the finished appearance alone is not enough to judge the result: the console also needs to recognise a cartridge.

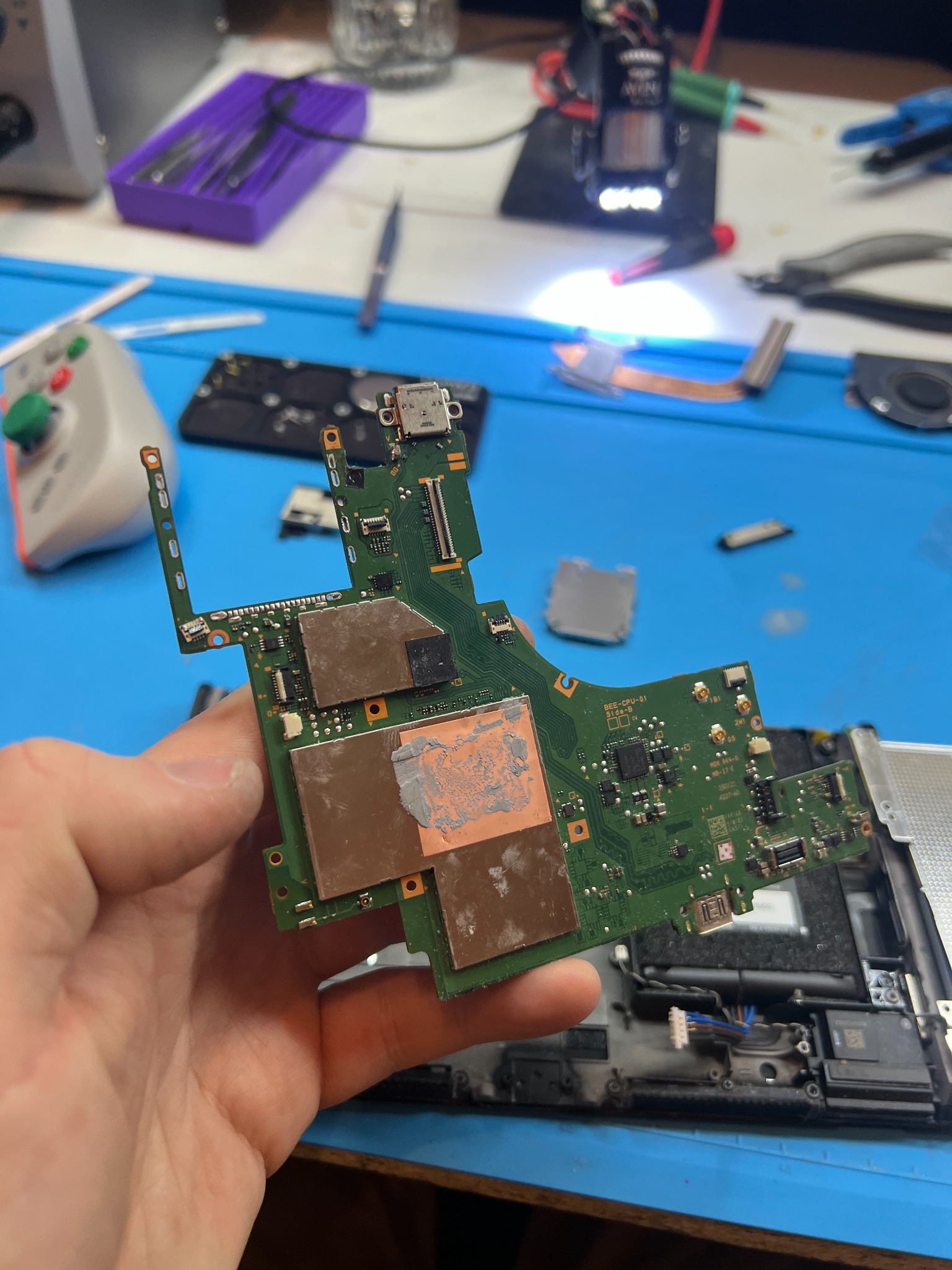

Switch 2 motherboard lifted out of the console with the game card reader removed — The motherboard out of the console during the game port replacement.

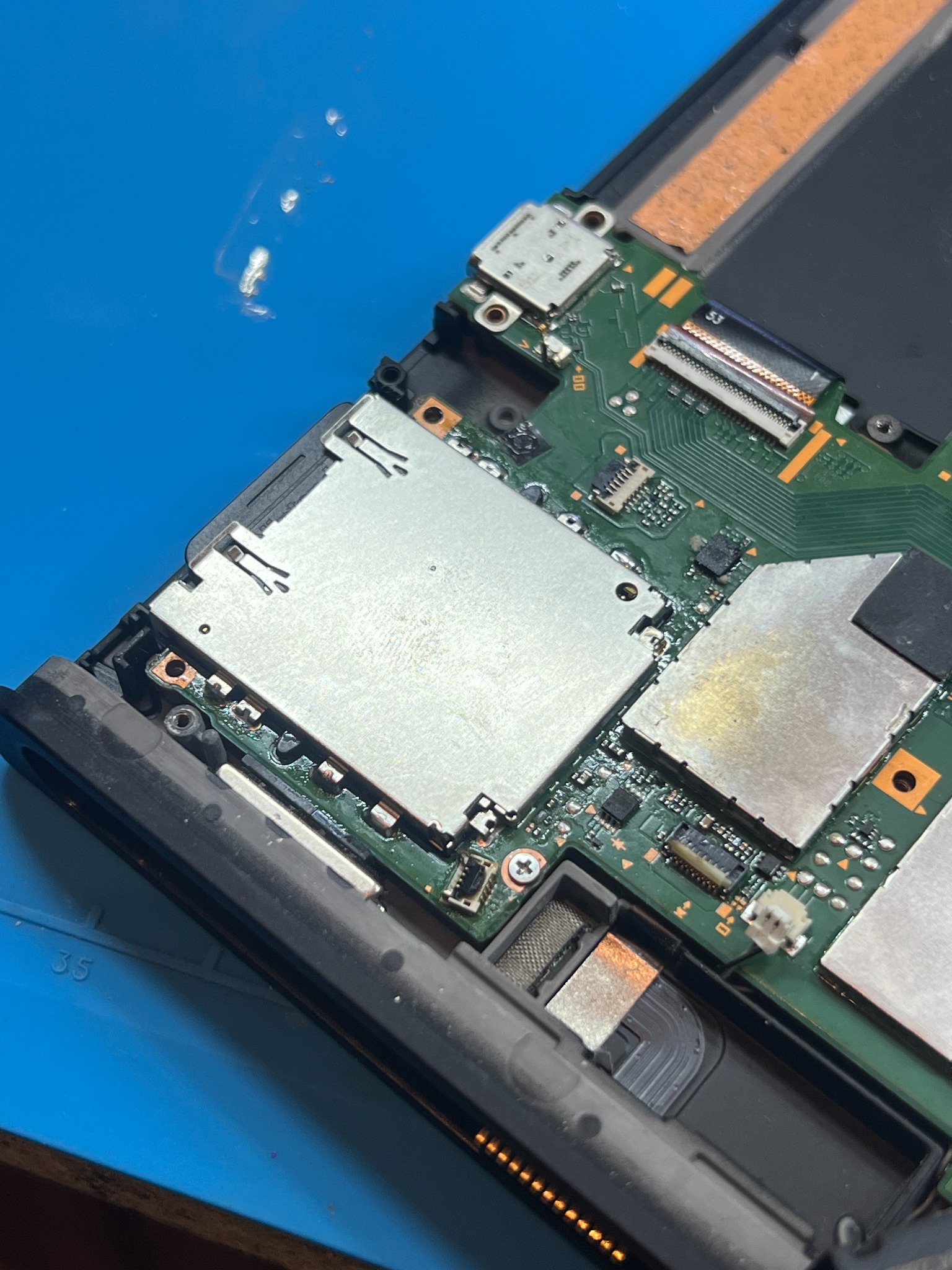

Close-up of the game card reader fitted to the Nintendo Switch 2 motherboard — The fitted reader. Its metal housing hides the electrical solder connections beneath it.

The result: recognising a game cartridge again

With the replacement port installed and the console reassembled, the Switch 2 recognised a physical game cartridge again. The photo below shows Super Mario Maker 2 selected, with the game card icon visible beside the title.

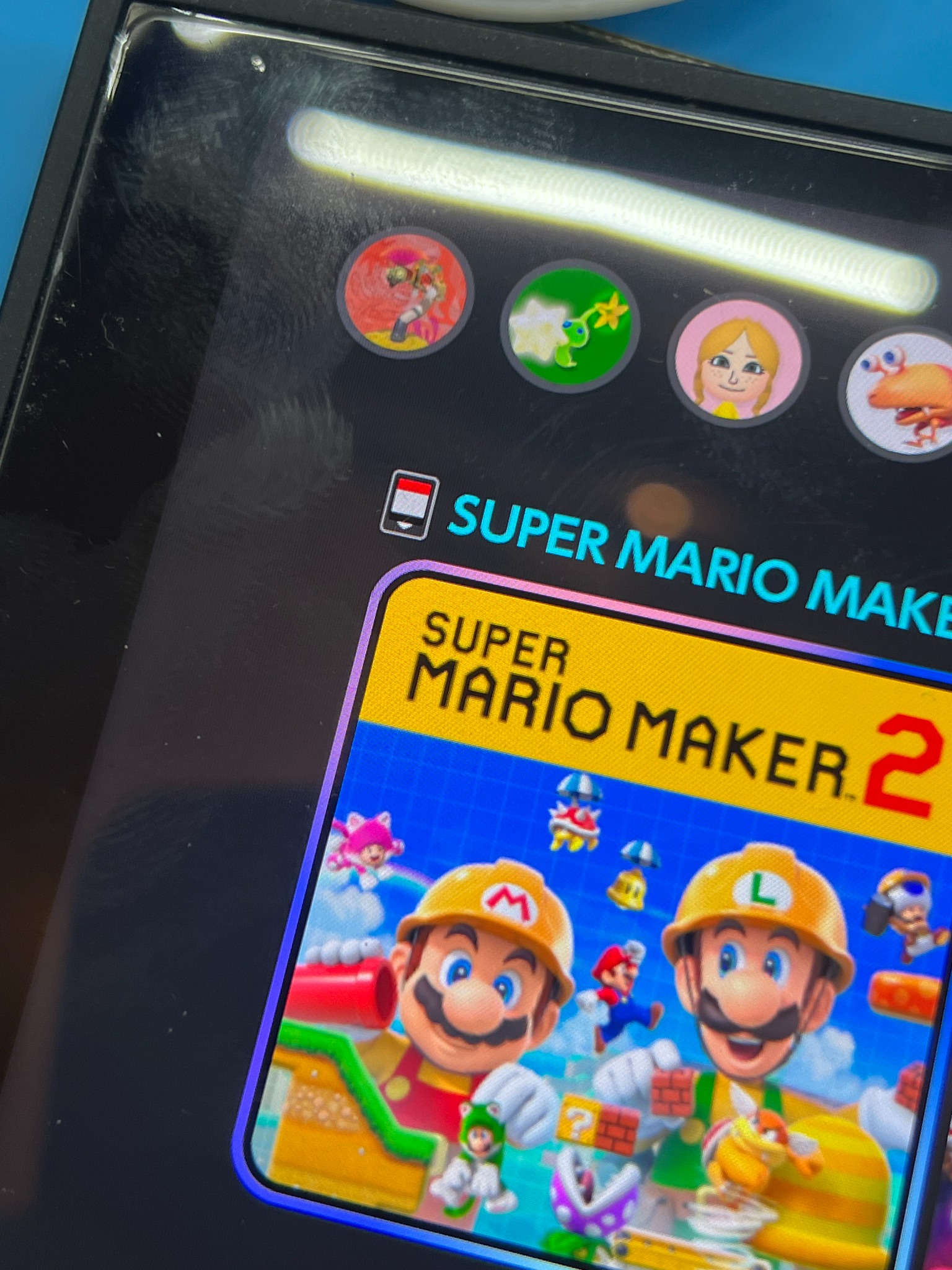

Switch 2 home screen showing Super Mario Maker 2 with the game card icon after the port repair — Cartridge detection restored after the game card port replacement.

Console: Nintendo Switch 2
Fault: Damaged game card port
Repair: Replacement of the soldered game card port
Result: Physical game cartridge recognised again
Price for this repair: $250 AUD including parts, labour and GST

The $250 price applies to this completed job. Other consoles need assessment, particularly if there is additional motherboard damage or a previous repair attempt.

Need a Nintendo Switch 2 game port repaired?

Repair Lab handles console repairs and microsoldering in Kangaroo Flat, Bendigo. If your Switch 2 has a damaged cartridge slot or is having trouble reading physical games, tell us what happened and which cartridges you have tried. We can assess the fault and quote the repair.
