Initial symptom

The console was clearly alive enough to boot, produce video, and enter recovery mode. Because of that, the focus from the beginning was on why the optical drive was not being detected correctly.

The update error was not a vague no-power fault or HDMI issue. It was specifically tied to the Blu-ray drive system, so that became the main diagnostic path.

F5401 was blown

The first useful fault I found was F5401 on the EDM-020 motherboard. The fuse was open.

Because the error was related to the Blu-ray drive, this was immediately suspicious. I replaced F5401 and retested the console. The new fuse remained intact and did not blow again, but replacing it did not resolve the Safe Mode update error.

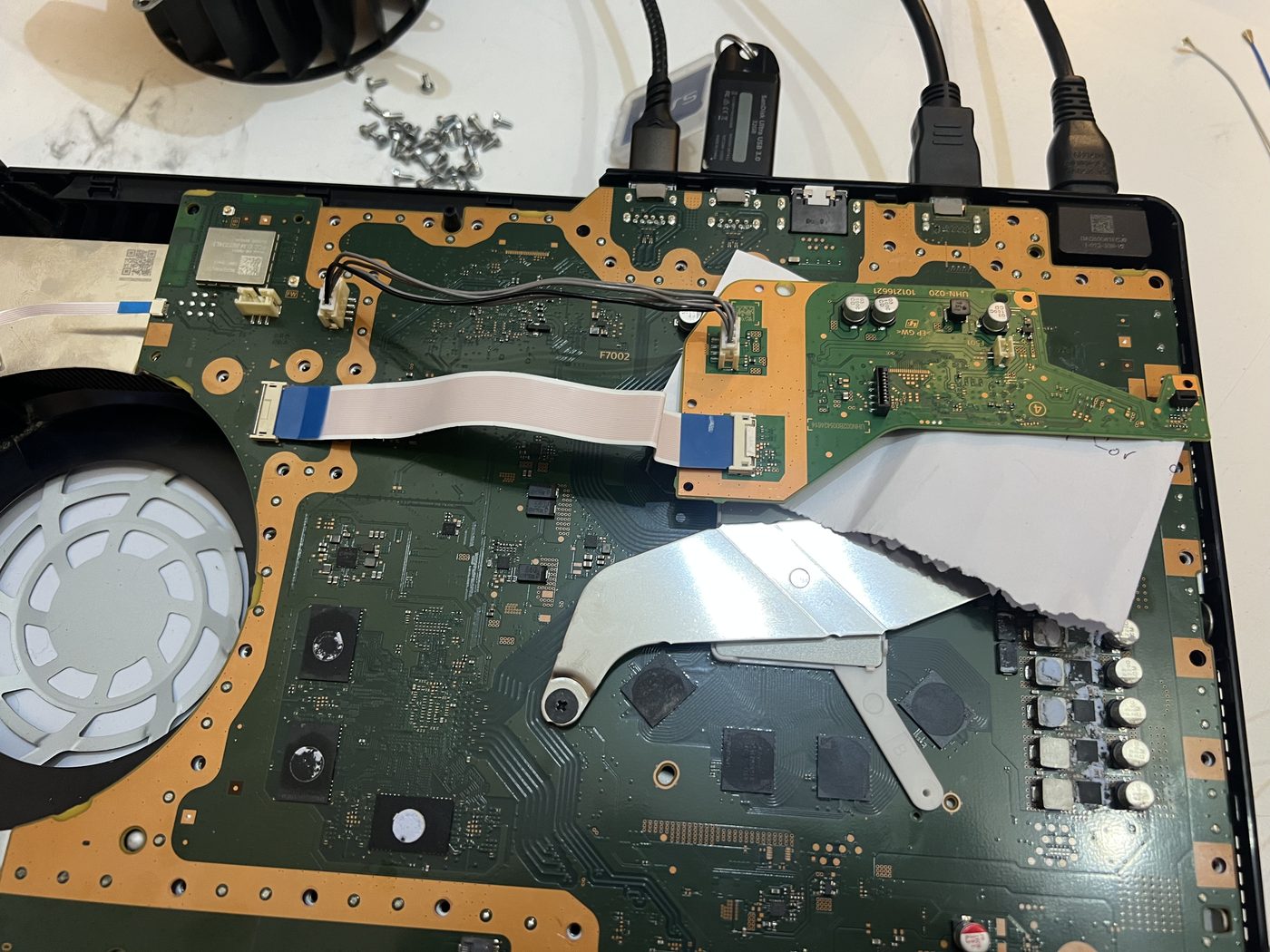

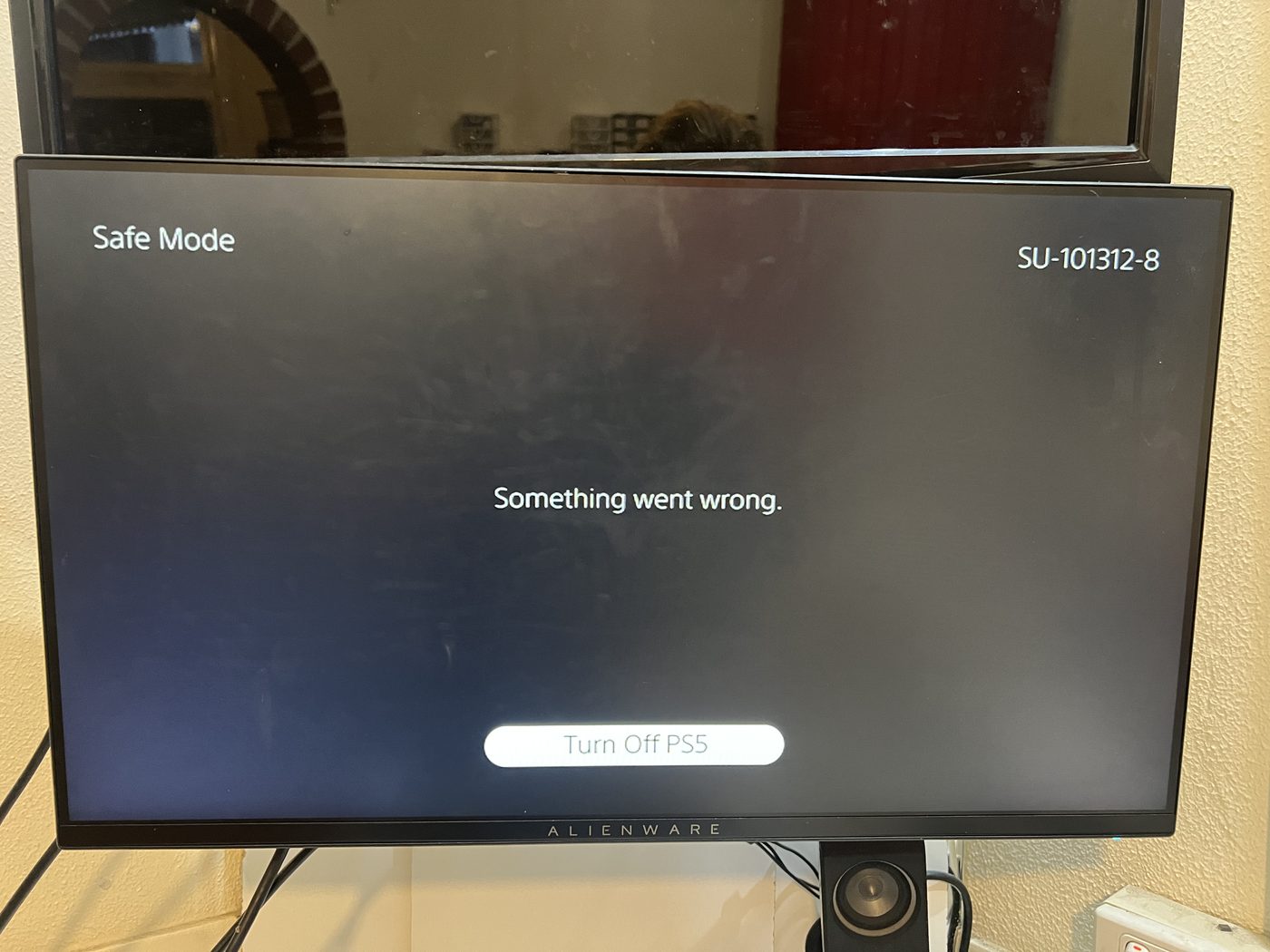

The console still failed with SU-101312-8. That suggested the fuse itself was not the root cause. More likely, the fuse had failed because of a fault somewhere downstream on the Blu-ray drive electronics.

Inspecting the Blu-ray drive board

The drive daughterboard in this console is marked UHN-020. I started checking the board for shorts around the main controller area.

It did not take long to find one. There was a definite short in the section surrounding the main Blu-ray controller IC.

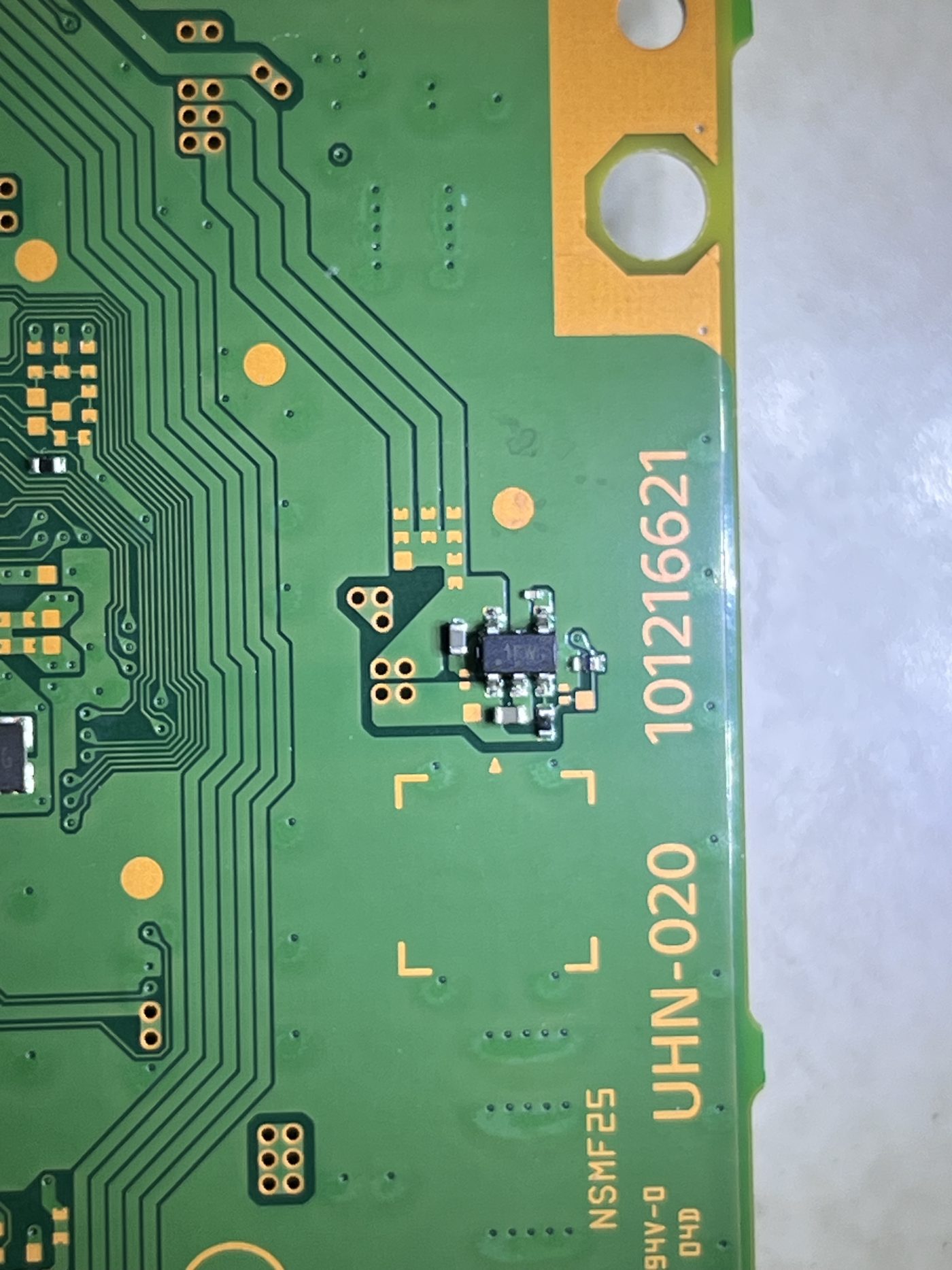

At first I suspected one of the surrounding capacitors or support components. That would have been the best-case scenario. A shorted ceramic capacitor around a controller rail is common enough and usually straightforward to repair.

I removed and replaced several nearby suspect components, but the short remained. That told me the fault was deeper in the circuit.

Narrowing down the short

I continued isolating components around the affected section. The important thing was to avoid assuming the large IC was bad simply because the short was nearby. The surrounding components had to be eliminated first.

After replacing or removing the likely external suspects, the short was still present. Eventually I reached the main controller itself.

I removed the large IC from the board. The result was immediate: the short disappeared.

With the controller installed, the rail was shorted. With the controller removed, the short was gone. That makes an internal failure of the IC extremely likely.

The failed controller

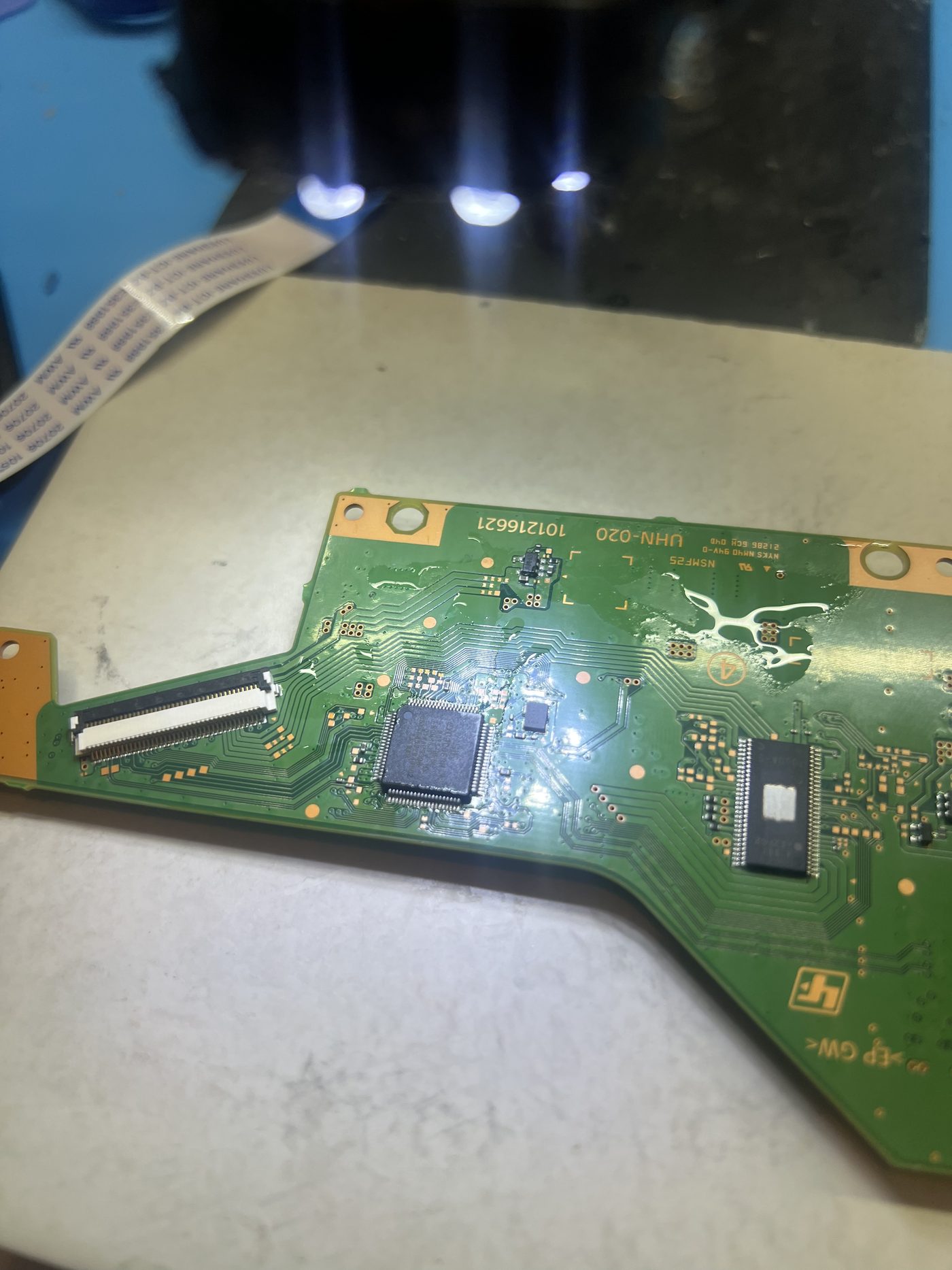

The chip is marked CXD90063R-1. It is an SIE-branded controller used on the PS5 optical-drive daughterboard. This is not a simple regulator or generic support IC. It is one of the major controller devices on the Blu-ray board.

Based on the measurements, the current diagnosis is that the CXD90063R-1 has failed internally and is responsible for the short. That also provides a logical explanation for the original blown F5401.

Why the fuse replacement did not fix it

Replacing F5401 restored the fuse path, but the underlying fault was still on the drive board. That is why the new fuse alone did not repair the console.

The fuse was a symptom of the fault, not the actual cause. Interestingly, the replacement fuse did not immediately blow again. That does not change the fact that the drive controller itself was later shown to be shorted.

The important point is that once the Blu-ray daughterboard was investigated directly, the fault could be isolated to a specific IC.

The pairing problem

Normally, once a failed IC is identified this clearly, the next step would be simple: find a donor board, remove a known-good replacement IC, reball it, and install it.

Unfortunately, the PS5 Blu-ray system complicates things. The optical-drive electronics on this generation of PS5 are paired to the console motherboard. That means the original drive board cannot simply be replaced with a random donor board.

The drive electronics contain console-specific information that the PS5 expects to see. Several repair sources also claim that the CXD90063R-1 itself is involved in that serialization or pairing process.

If that is correct, replacing the damaged CXD90063R-1 with a random donor IC may electrically repair the board but still leave the drive unable to authenticate with the console.

Why the original chip matters

At this stage, the original CXD90063R-1 is being treated as a potentially married component. That means it needs to be preserved.

I am not going to discard it or immediately fit a donor chip without knowing exactly how the pairing data is handled. If the unique pairing information is inside the controller and cannot be transferred, then a donor replacement may not solve the problem even if the donor IC is electrically perfect.

The repair then becomes less about simply replacing a shorted chip and more about whether the original identity can be recovered or preserved.

Why a complete donor board is not the answer

A complete UHN-020 donor board would contain a working controller. Electrically, it would probably eliminate the short. But that board would belong to another console.

Because the Blu-ray electronics are paired, replacing the entire board is not expected to restore normal operation on this console. The same concern applies to moving a donor CXD90063R-1 onto the original board if the serialization is stored inside that device.

So the challenge is no longer finding the failed component. That part is done. The challenge is replacing it without losing the console-specific pairing.

Current diagnosis

The current diagnosis is an internally failed or shorted CXD90063R-1 on the UHN-020 Blu-ray drive board.

Final status

The fault has been isolated to the Blu-ray drive daughterboard, and the CXD90063R-1 is strongly suspected of being internally damaged.

Unfortunately, that same controller appears to be involved in the unique pairing between the Blu-ray drive electronics and the console. This makes the repair much more complicated than a normal shorted support component.

If the pairing data is locked inside the CXD90063R-1 and cannot be read or rewritten, this may be a case where the failed component is easy to identify but extremely difficult to replace.
